Consumer Electronics Normally Closed Tactile Switch Iron Cover 0.5mA Current Rate

Name: Consumer Electronics Normally Closed Tactile Switch Iron Cover 05mA Current Rate
Brand: BZCN
Price: 1 USD

Wholesale Consumer Electronics Normally Closed Tactile Switch Iron Cover 0.5mA Current Rate from china suppliers

Brand Name : BZCN

Model Number : TS-D001

Certification : SGS

Place of Origin : CHINA

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000000 pcs per week

Delivery Time : 3 workdays

Packaging Details : 1000 pcs per bag

Material : PA66

Voltage : 12v

Operation : Momentary

Cover : Iron

Current rate : 0.5mA

Terminal : Copper

Contact Now

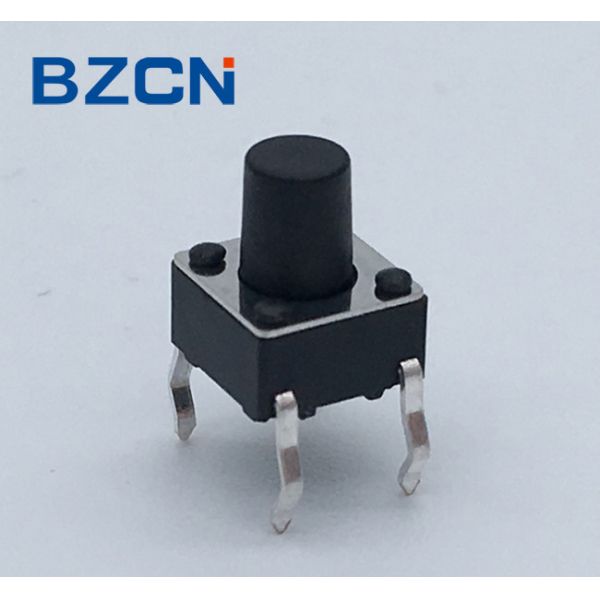

**6 * 6 * 5 mm snap in NC tactile switch normally closed operation switch**

Designed for DIP applications, each model has different features ranging from low profile designs, many actuator sizes and operating forces.

Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation and computer/peripherals.

Features

●High operating force (3.0N or 3.6N) suited to automotive equipment requirements
●Long life of 300,000 cycles realized despite the high operating force
●Middle stroke (1.05mm)

Applications

●Switches for car audio-visual and navigation systems, steering wheels
　and other automotive equipment
●Industrial equipment and measuring instruments

Spec.

Model No.		TS-D001
Terminal Type		DIP
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		160/180/250 gf
Operation Life		300,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

Reference:

Consumer Electronics Normally Closed Tactile Switch Iron Cover 0.5mA Current Rate
